Engineered for High-Density Concrete Compaction
ShinYoung vibrator shaft assemblies are built for demanding construction environments, delivering consistent high-frequency compaction to eliminate air voids and structural honeycombing.

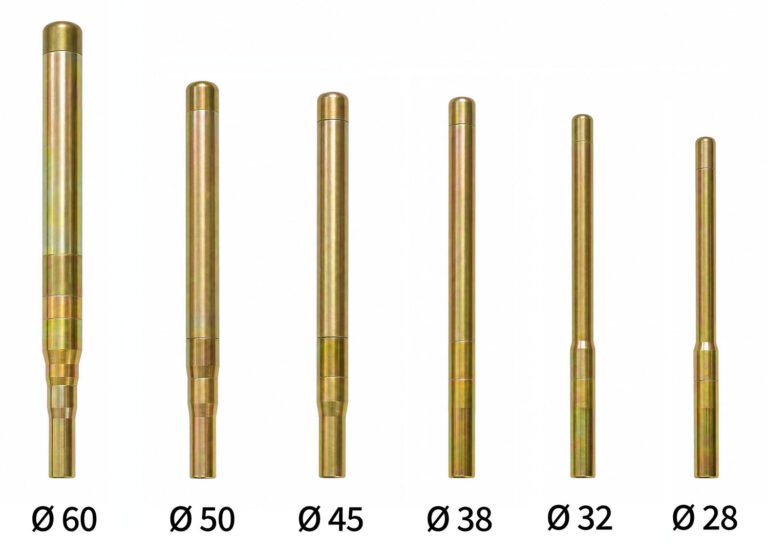

Full Range of Poker Diameters
Available in Ø28mm to Ø60mm heads to handle every applicationโfrom tight rebar grids in walls and columns to heavy foundation pours.
Universal Motor Compatibility
Features standardized quick-connect coupling fittings engineered for seamless integration with most standard electric motors and gasoline engine units.
Heavy-Duty Braided Hose
Multi-layered rubber hose with oil and abrasion resistance prevents kinking and guarantees long-term service life on harsh job sites.
Premium Wear-Resistant Brass Head
Solid brass poker head delivers maximum centrifugal vibration output while resisting extreme concrete slurry wear for flawless finishes.
Specification
| Model | Dia × L(mm) | Frequency(V.P.M) | Revolution(R.P.M) | Flexible Hose | Weight(kg) | Engine Unit |
|---|---|---|---|---|---|---|
| SYV-32 | 32 × 445 | 12,000 ∼ 14,000 | 3,000 ∼ 3,600 | 6M Standard | 15 | 3.5 ∼ 6 HP 3,600 RPM Gasoline |
| SYV-38 | 38 × 445 | 16 | ||||
| SYV-45 | 45 × 445 | 17 | ||||
| SYV-60 | 60 × 545 | 24 |
